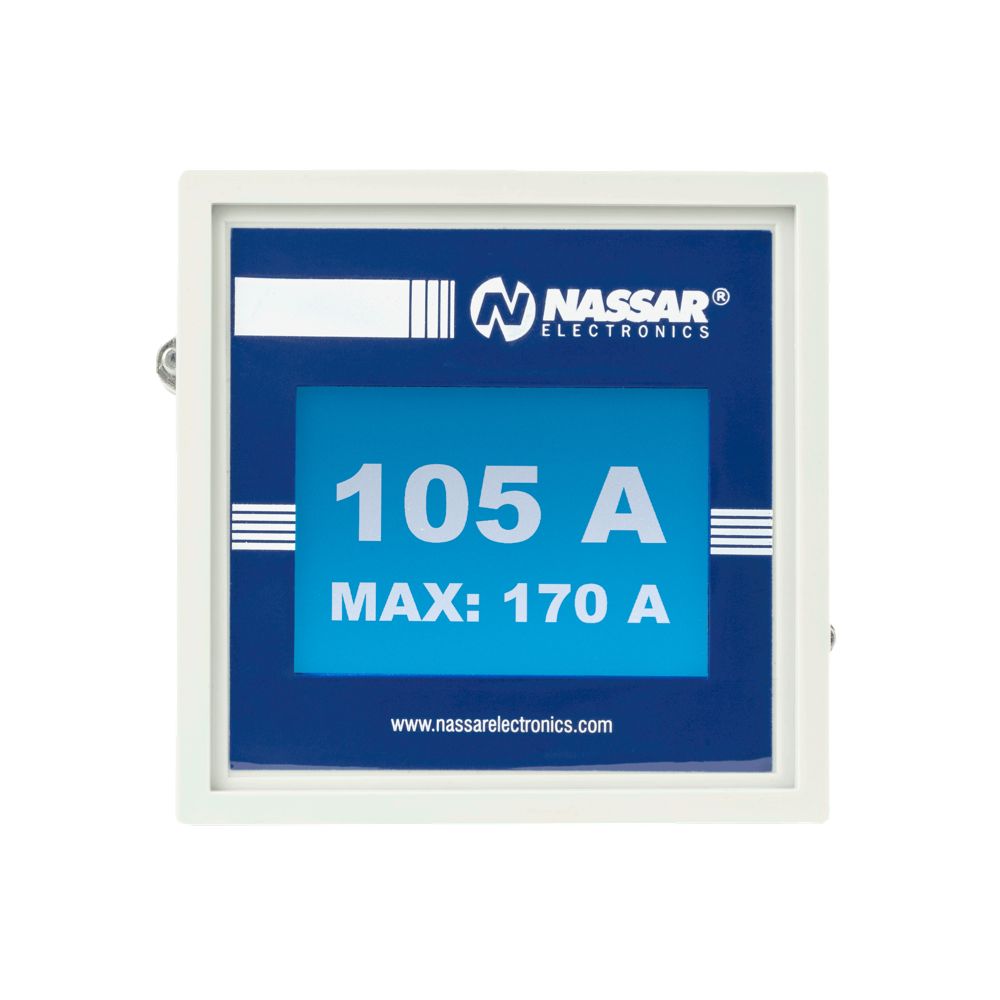

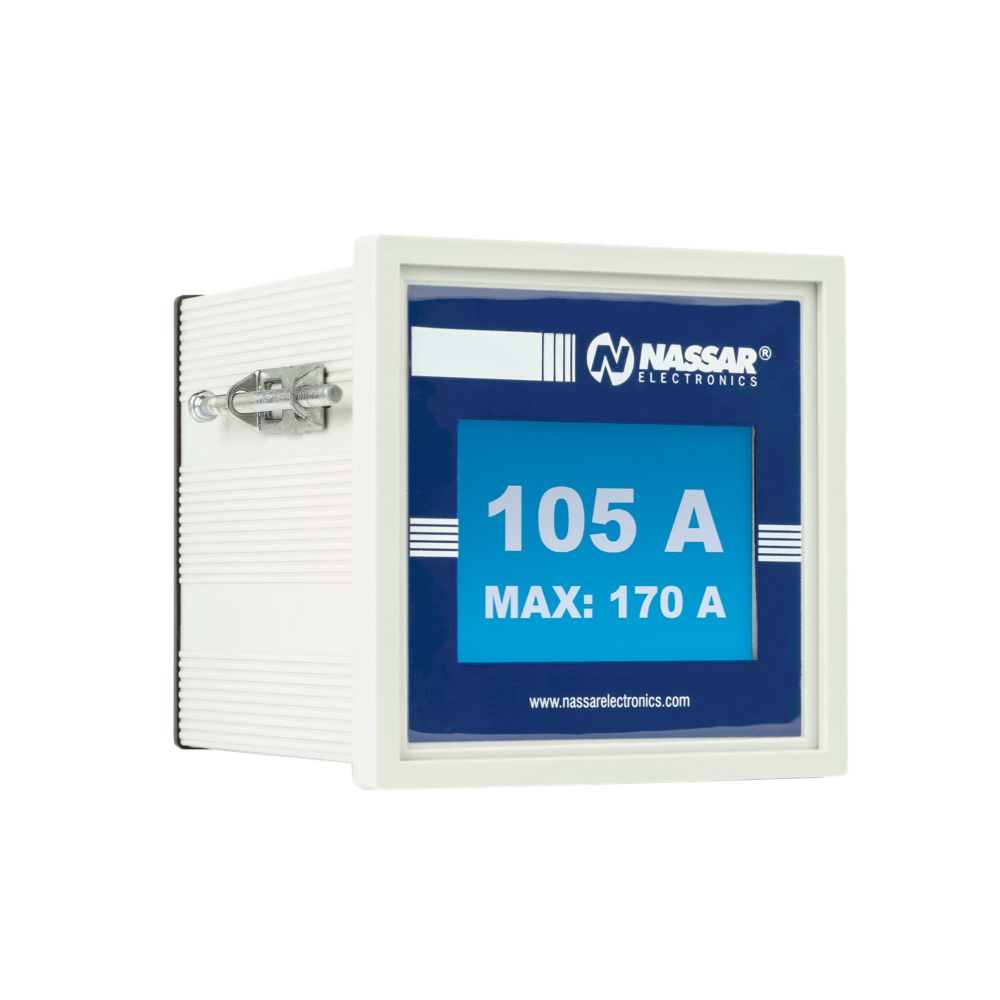

AD1: Digital Single-Phase RMS Ammeter

Request Quote Request Quote

More than 52 available for immediate shipping.

Features

Available scales up to 5000A.
Excellent accuracy of 0.9%.
Reading of RMS values.
Recording of maximum values.
For panel mounting.
Power supply voltage 120/220 VAC.

Description

The ammeter displays the amperage on the screen and records the maximum current to monitor consumption. It is mounted on the door of a cabinet or control panel.

We offer 2 models depending on the measurement scale:

80A model AD1-80
Measures from 0 to 80A, includes the necessary high-precision current transformer for measurement.

Multi-Range model AD1-5000
Can be configured from 200 to 5000A in 10 ranges. The current transformer with a 5A output necessary for measurement is not included.

Product Information User Manual

Specifications

Accuracy: 0.9% + 1 digit.
Power Supply Voltage: 120/220 VAC + 15% 50/60 Hz.
Maximum Current Readings: 0.5s duration.
Operating Frequency: 40 to 70 Hz.
Operating Temperature: -10 to +50 ºC.
Consumption: Approximately 3 Watts.
Dimensions: 9.6 x 9.6 x 10.7 cm
Weight with Packaging: 0.7 Kg.

For more technical information, click here.
