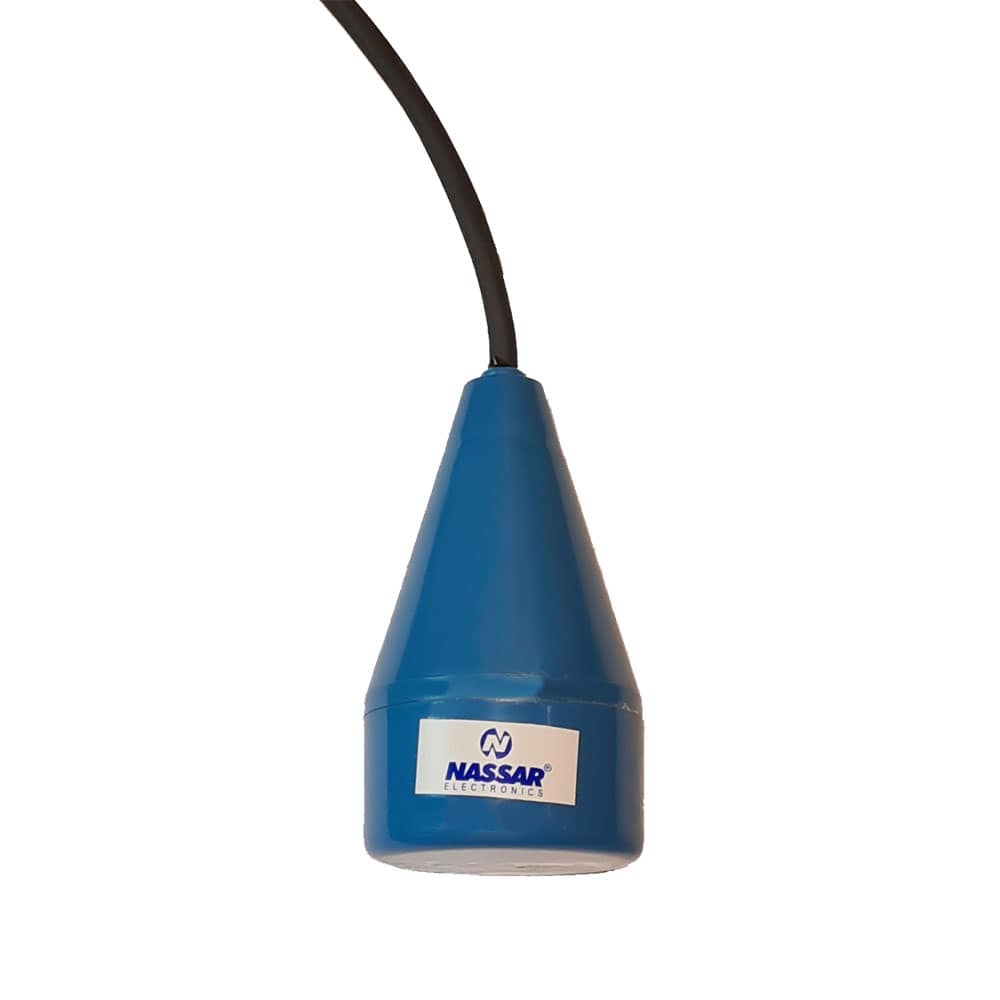

DN-1: Mercury Float Switch

Request Quote Request Quote

More than 3011 available for immediate shipping.

Features

Practically unlimited lifespan. (10,000,000 cycles)
Normally Open (NO) contact.

Description

The mercury float switch is used to control and/or protect pumping equipment during its operation in tank emptying processes. The float has an internal switch that opens or closes depending on the float’s position. When the float is submerged, it rises, and the internal contact closes. As a standard, mercury floats should not be used for potable water tanks.

Product Information User Manual

Voltage: 120/220 VAC Contact: Normally Open (NO).
Contact Capacity: 2A @ 220V resistive load.
Cable Length: 7m Operating Temperature: 0 to 60 °C.

Lifespan: 10,000,000 operation cycles.

For more technical information, click here.

Related products

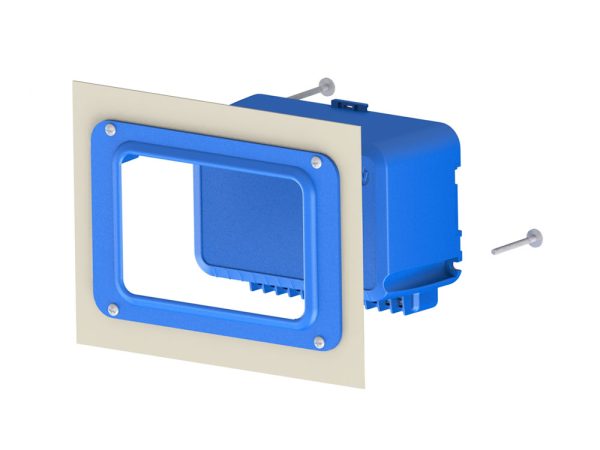

PMF-237: Front-Mount Adapter Plate for Control Panels

Leave the equipment visible on the cabinet door to be able to view voltage, current, power, faults, alarms, and more information from the screen.

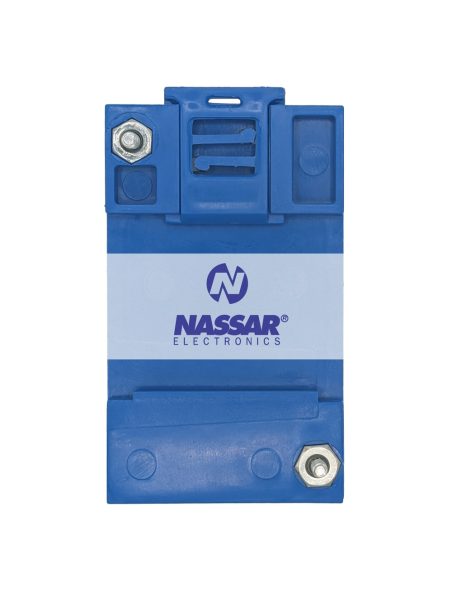

DIN3: DIN Rail Mounting Adapter Plate

Adapter plate for mounting equipment on DIN rail. Facilitates mounting and maintenance without the need for screws.

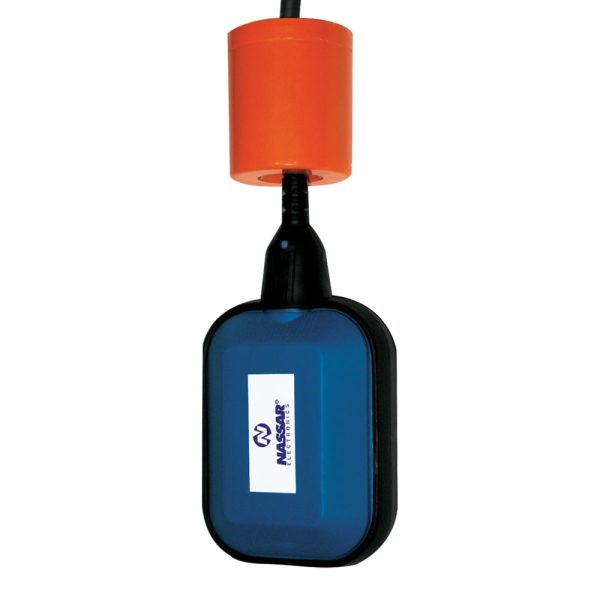

DN-2: Mechanical Float Switch

To control and/or protect pumping equipment during its operation in emptying or filling processes of tanks.

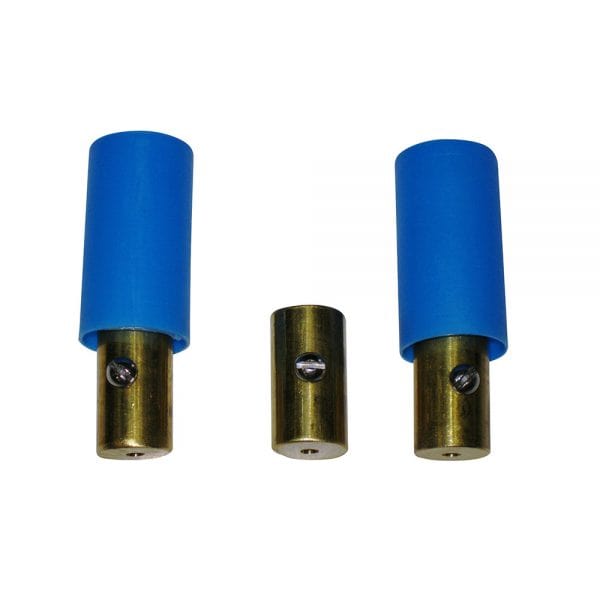

E-3: Set of 3 Probes with Plastic Covers

Brass electrodes for detecting water and other liquids. They come with a plastic cover to prevent false contacts in metal containers or well casings.

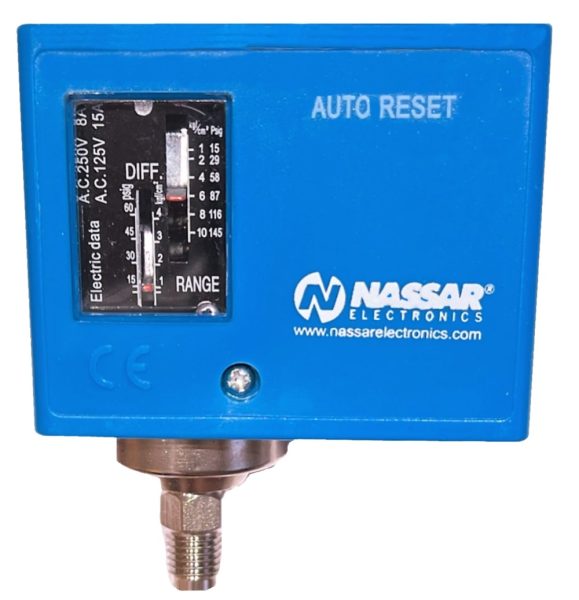

IS: Pressure Switch

With normally open and normally closed contacts that operate at the set pressure, it features a dial to facilitate pressure adjustment.

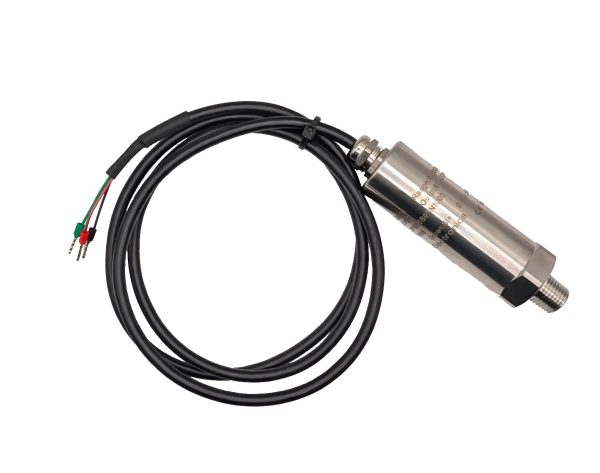

SP: 4-20 mA Pressure Sensor

Honeywell pressure sensor with 4-20 mA output.

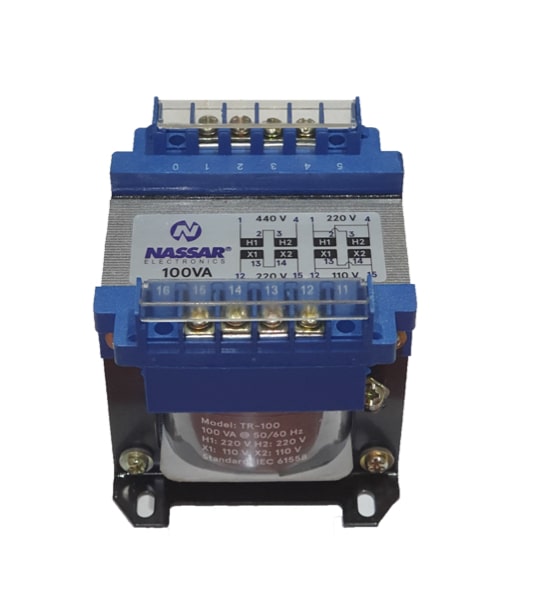

Control transformerTR: Control TransformerControl transformer
