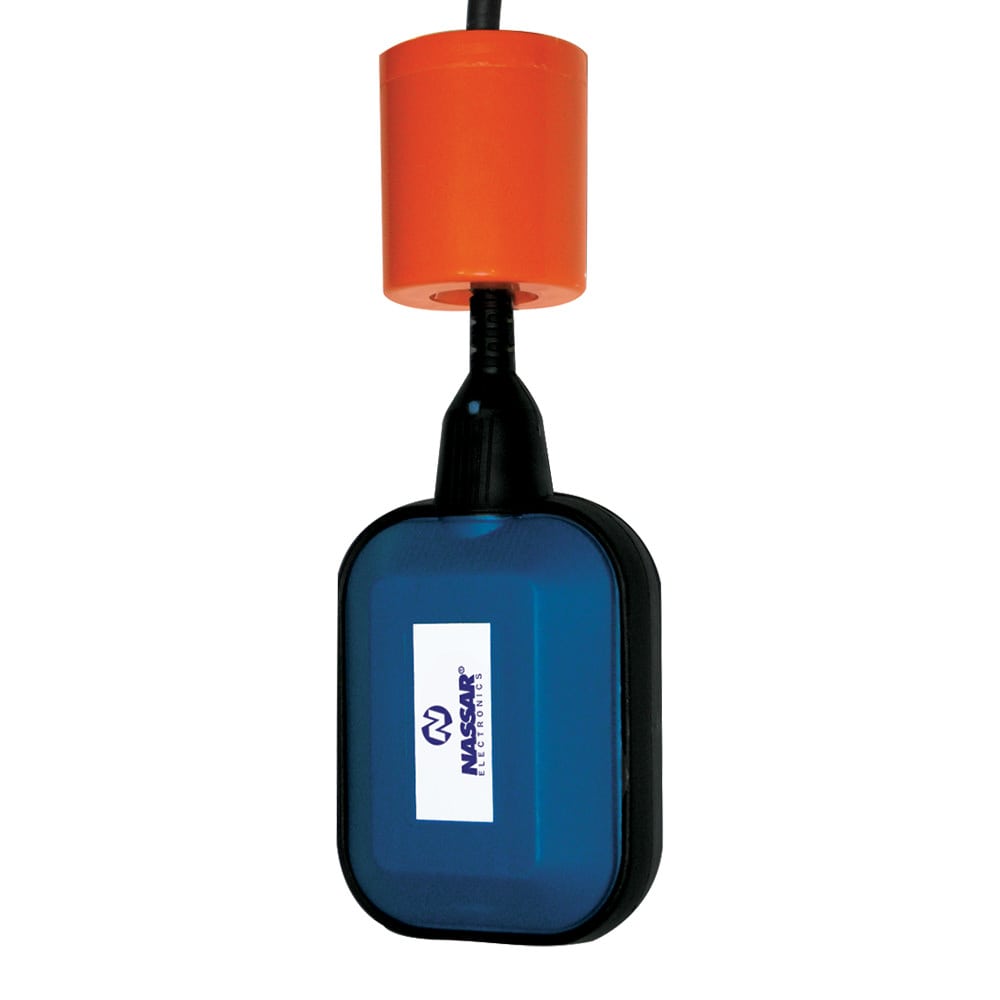

DN-2: Mechanical Float Switch

Request Quote Request Quote

More than 3011 available for immediate shipping.

Features

SPDT, Normally Closed (NC), and Normally Open (NO)
Long operating life. (100,000 cycles)

Description

The float switch is used to control and/or protect pumping equipment during its operation in tank emptying or filling processes. The float has an internal switch that opens or closes depending on the float’s position.

Product Information User Manual

Specifications

Voltage: 120/220 VAC Contact: SPDT, Normally Closed (NC), and Normally Open (NO).
Contact Capacity: 16A @ 120V / 5A @ 220V resistive load.
Cable Length: 7m Operating Temperature: 0 to 50 °C.

Lifespan: 200,000 operation cycles.

For more technical information, click here.
