Full Voltage Starter Panel | APV
Features
- 2-year warranty.
- Robust, high-tech design with the best quality.
- IP66 / NEMA 4 dustproof and waterproof metal enclosure.
- Short-circuit protection with a thermal-magnetic breaker or motor protector.
- Overload protection with an overload relay or motor protector.
Description
The APV series full-voltage starters are built with the highest quality components to ensure the reliable starting and protection of single-phase and three-phase pumps and motors. They can include additional measurement and protection accessories for all applications.

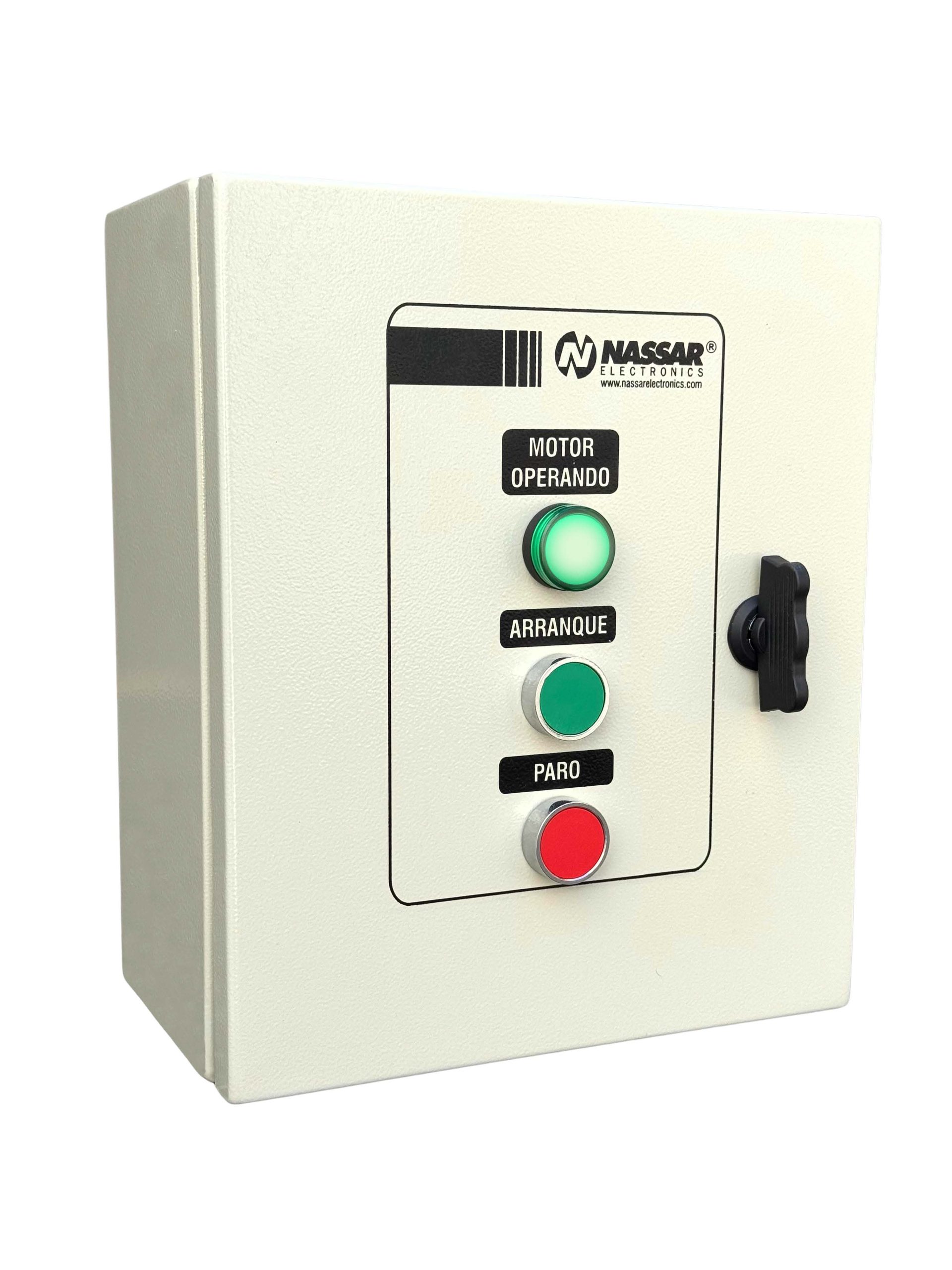

The APV model starters include:
- Start/stop push-button station.
- Green indicator light for motor operation.
- Contactor.
- Short-circuit protection with a thermal-magnetic breaker or motor protector.
- Overload protection with an overload relay or motor protector.
- Control transformer for starters at 440 V.
- IP66 / NEMA 4 dustproof and waterproof metal enclosure with corrosion-resistant paint.
Optional Equipment
- Manual-Off-Automatic operation selector.
- Protection against low voltage, imbalance, and phase failure with Fasealert-3 model F3.
- Leakage detector in the seal and high-temperature model DFS-12 (1 per pump).
- Liquid Level Control Relay for Low Suction Level Protection, Model EN-3.
- Safety disconnect switch that cuts power when opening the cabinet.

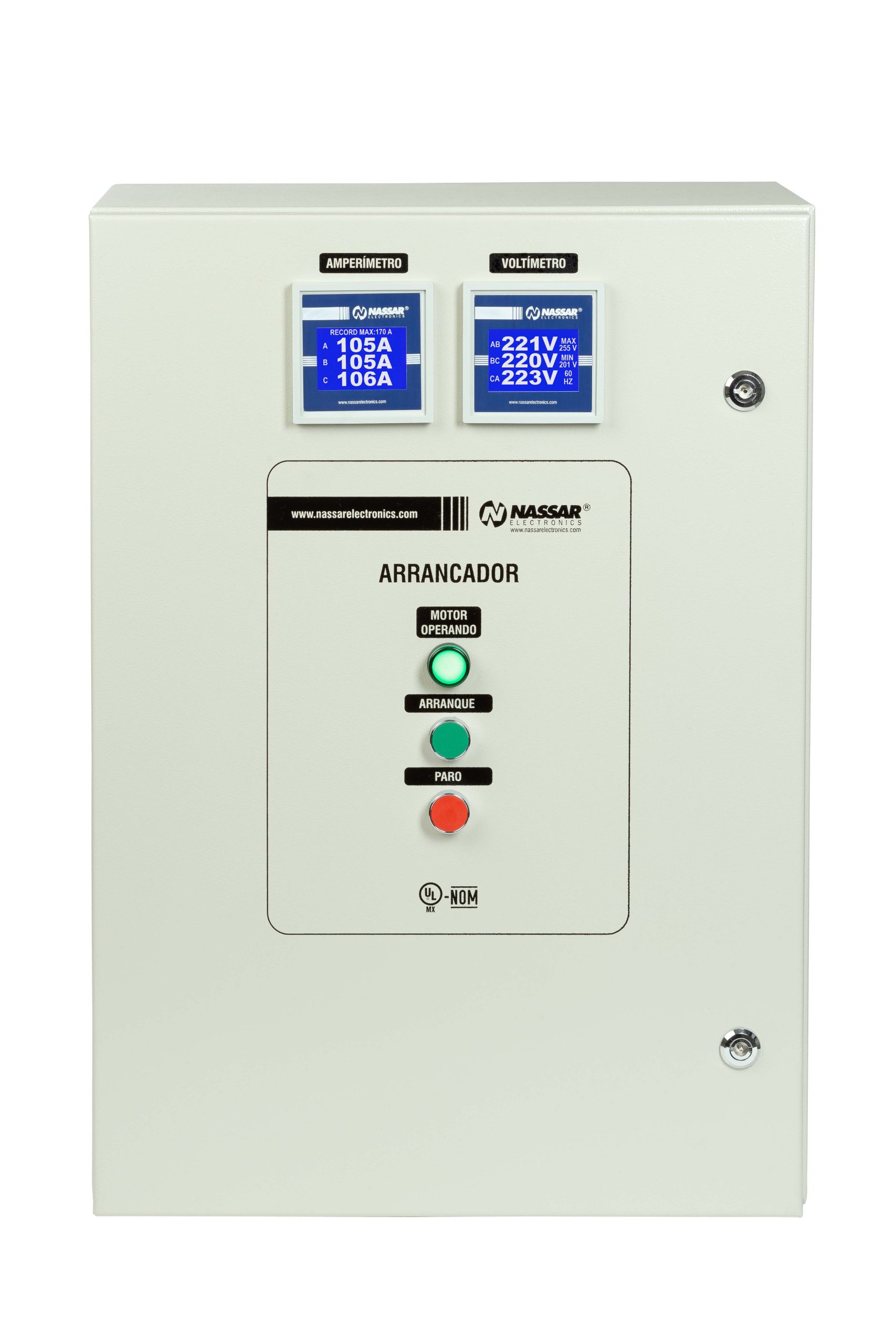

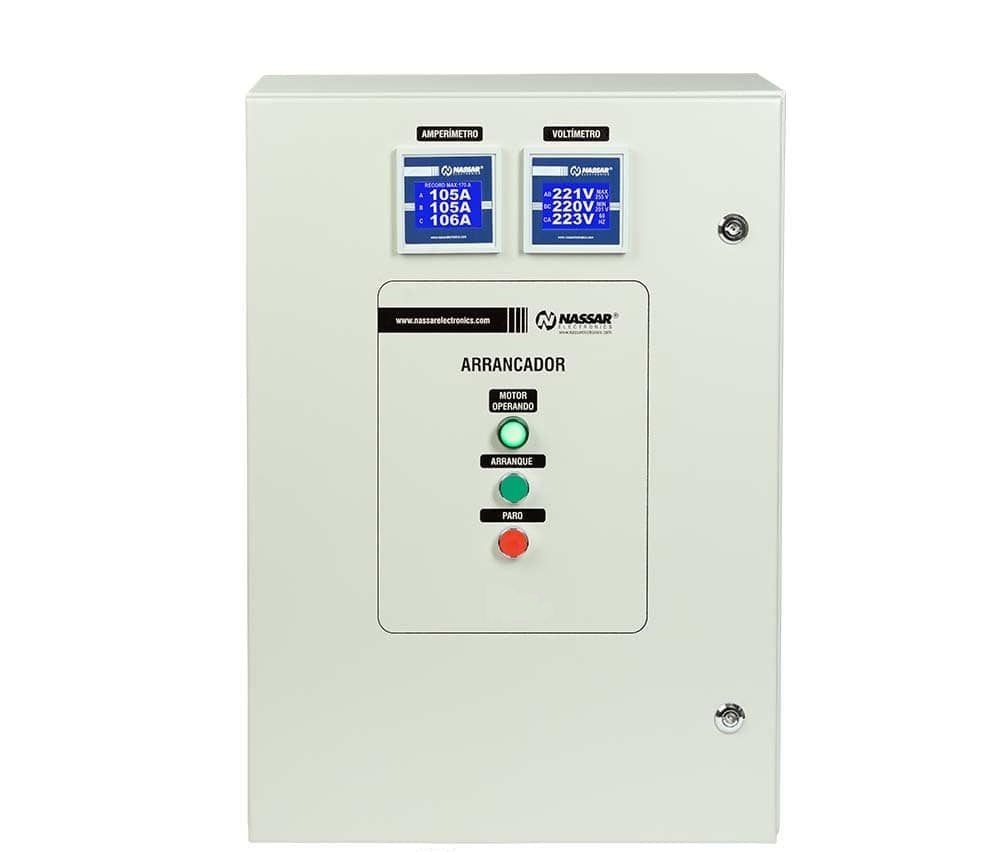

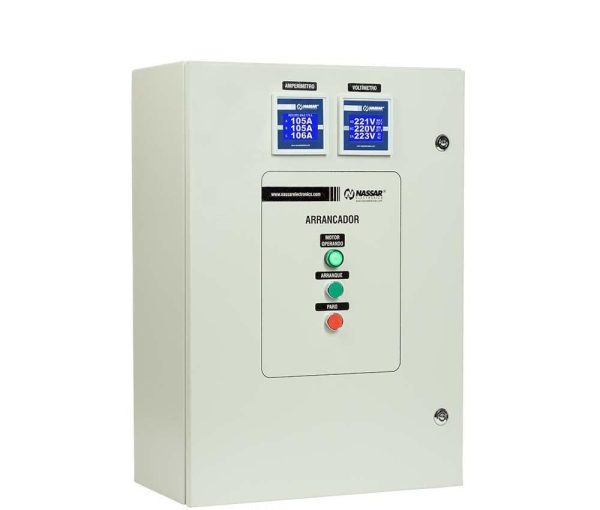

- Three-phase RMS digital voltmeter with max/min voltage recording and frequency meter. Mounted on the cabinet door.
- Three-phase RMS digital ammeter with max current recording. Mounted on the cabinet door.
| HP | AMP. RANGE AT 220 V | AMP. RANGE AT 440 V |
| 1 | 2.5-4 | 1.6-2.5 |
| 2 | 6-10 | 2.5-4 |
| 3 | 9-12 | 4-6 |
| 5 | 13-18 | 6-10 |
| 7.5 | 17-23 | 9-14 |
| 10 | 24-32 | 13-18 |
| 15 | 37-45 | 17.23 |
| 20 | 48-65 | 24-32 |
| 25 | 63-80* | 30-40 |
| 30 | – | 37-50 |
| 40 | – | 48-65* |
| 50 | – | 63-80* |
For other capacities, please request a quote.
Note: For these sizes, soft starters are recommended.*
