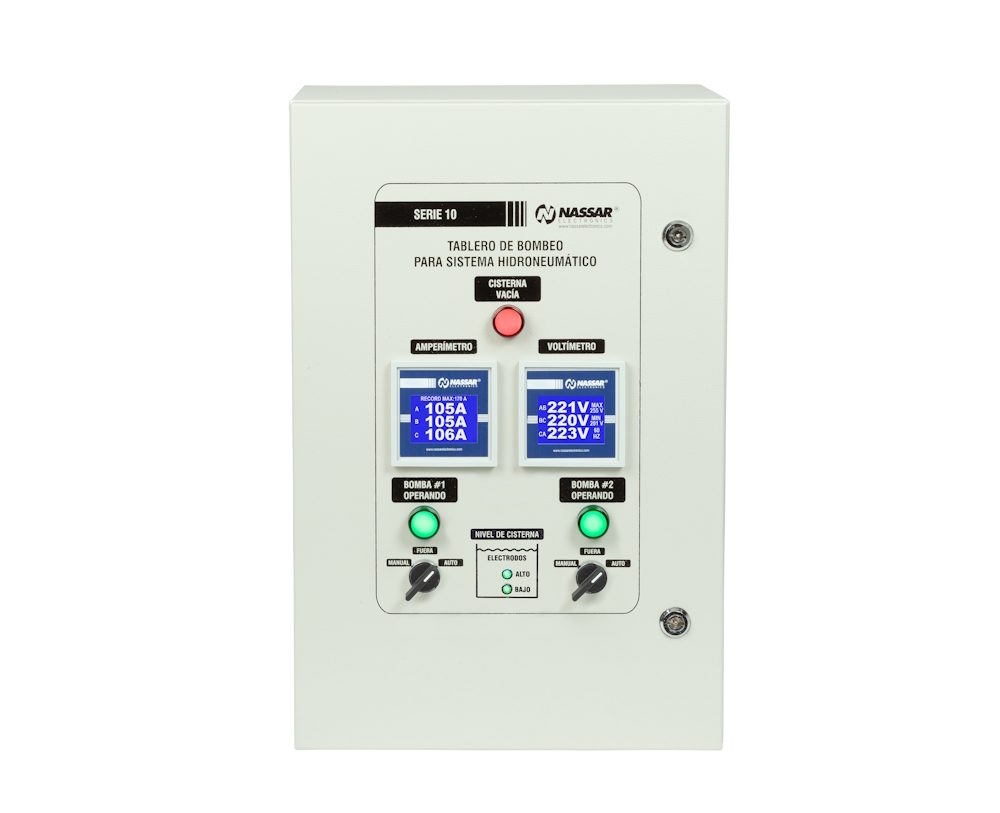

Series 10: Hydropneumatic Booster Control Panel

Request Quote Request Quote

Immediate shipping on selected models, 1 to 3 days for the rest of the models.

Features

Robust design, high-tech with the best quality.
NEMA 4(IP66) dust and water-resistant cabinet.
Includes protection against low suction level with alarm pilot.
Individual operation indicators and selectors: Manual-Off-Automatic.

Description

The panels for hydropneumatic systems SERIES 10 control the automatic operation of 1 to 4 pumps to maintain the desired pressure in the hydropneumatic tank, within the desired ranges adjusted in the pressure switches.

The panels for 2, 3, and 4 pumps alternate and run the pumps simultaneously, according to the demand signals they receive from the pressure switches.

The panels include contactors and protection against short circuits and overload, low water level in the cistern, module for alternating and simultaneous control, electrodes, selectors, operation indicators for each pump, and low suction level indicators.

The SERIES 10 panels have an NEMA 4(IP66) dust and water-resistant metal cabinet, with corrosion-resistant paint.

Optional Equipment

Pressure switches mounted on the panel 0.5-6 kg/cm2 (7-87 Psi).
Protection against low voltage, imbalance, and phase failure with Fasealert-3 model F3.
Soft starters.
Pump-Monitor: Electronic overload relay with protection against low suction level without the need for electrodes (1 per pump).
PD-640 protector against high-voltage discharges.
Safety disconnect switch that cuts power when opening the cabinet.
Three-phase RMS digital voltmeter with max/min voltage recording and frequency meter. Mounted on the cabinet door.
Three-phase RMS digital ammeter with max current recording. Mounted on the cabinet door.

Product Information User Manual

Specifications

HP	AMP. IN 220 V	AMP. IN 440 V
1	2.5 to 4	1.6 to 2.5
2	6 to 10	2.5 to 4
3	9 to 12	4 to 6
5	13 to 18	6 to 10
7.5	17 to 25	9 to 12
10	23 to 32	13 to 18
15	37 to 50	17 to 25
20	48 to 65	23 to 32
25	63 to 80	30 to 40
30	80 to 93	37 to 50
40	90 to 115	48 to 65
50		63 to 80
60		80 to 93

For more technical information, click here.

Related products

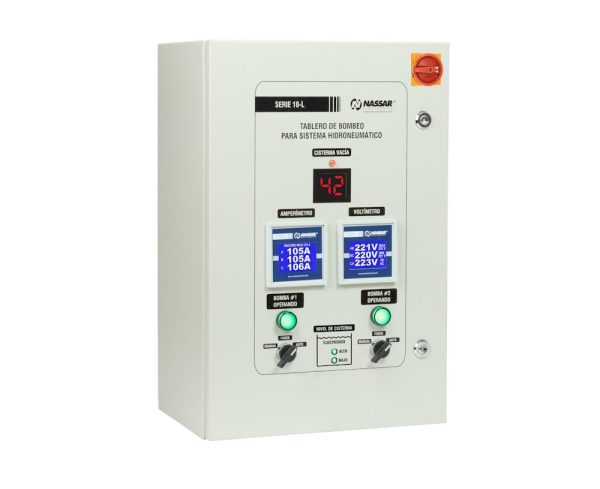

Series 10L: Digital Hydropneumatic Booster Control Panel
