Pump-Monitor: Single Phase Motor & Pump Protection Relay

Request Quote Request Quote

More than 198 available for immediate shipping.

Features

For motors from 1/4 to 15 H.P.
Self-calibrating or manually adjustable.
With LCD display indicating voltage, current, and power.
Protects against voltage failures, overload, and low suction level without the need for electrodes.
Fault memory.
Certified by UL de México SA de CV.

Description

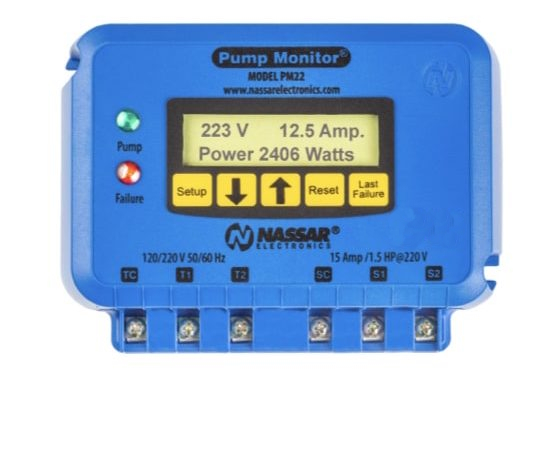

The Pump Monitor PM-2 is an innovative electronic overload relay specially designed for the protection of single-phase pumps. It protects the pump from overload, high/low voltage, rapid cycling, and low suction level without the need for electrodes.(Low load) It eliminates the need for a contactor, overload relay, float switch, and high/low voltage protection. It measures the pump’s power to determine when it is operating without water. The Pump Monitor is self-calibrating, meaning it calibrates itself, although it can be manually adjusted if desired. It allows adjusting overload, low load, trip curve, high/low voltage, and connection delay.

It features an LCD display to indicate voltage, current, power in watts, faults, and more. It has fault memory to indicate faults that occurred when you were not present, and LED indicators on the front make it easy to see if the system is in normal condition or if there is a fault.

When there is a fault, the Pump Monitor protects the pump by disconnecting it. The Pump Monitor disconnects based on a trip curve to avoid unnecessary stops due to transient faults. The connection after a fault can be manual or automatic with an adjustable connection delay.

Optional Equipment

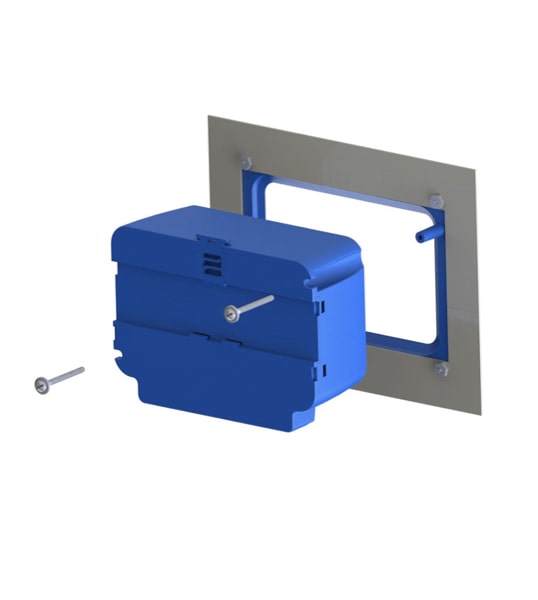

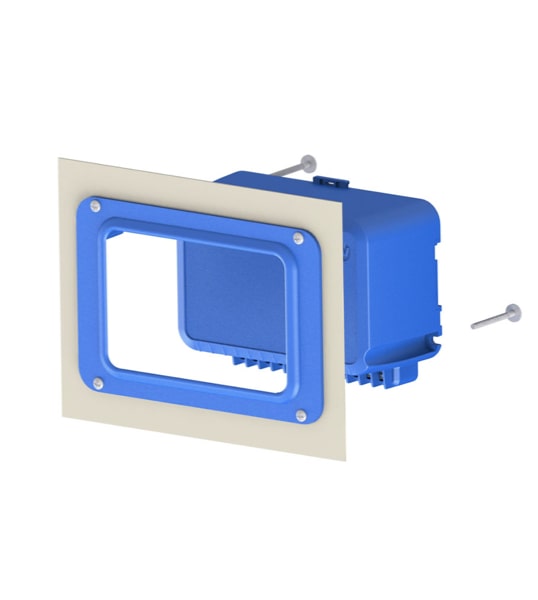

Adapter plate for front cabinet mounting

Watch Video Product Information Manual PM-22 Manual PM-23

Specifications

Model	Rated voltage	Nominal current	Contact capacity	Low voltage setting	High voltage setting
PM-22	120-220 V ± 15%	15 Amp max.	15A max. @220VCA 1.5 HP @220VCA	90-220V	120-260V
PM-23	220 V ± 15%	60 Amp max.	Requires external contactor	180-220V	220-260V

Frequency: 50/60 Hz
Connection Delay: Adjustable 1 to 120 min.
Reset: Manual or automatic.
Protection for Fast Cycle: 4 stop-start cycles/Min.
