Series 10L: Digital Hydropneumatic Booster Control Panel

Request Quote Request Quote

Immediate shipping on selected models, 2 to 5 days for the rest of the models.

Features

Screen with digital pressure gauge (Cheaper than using pressure switches).
Affordable price, similar to traditional panels that use pressure switches.
Robust and innovative design, high-tech with the best quality. 2 years warranty.
NEMA 4(IP66) dust and water-resistant cabinet.
Includes protection against low suction level with alarm pilot.
Modbus Ethernet or RS-485 Communication (Optional).
Individual operation indicators and selectors: Manual-Off-Automatic.

Description

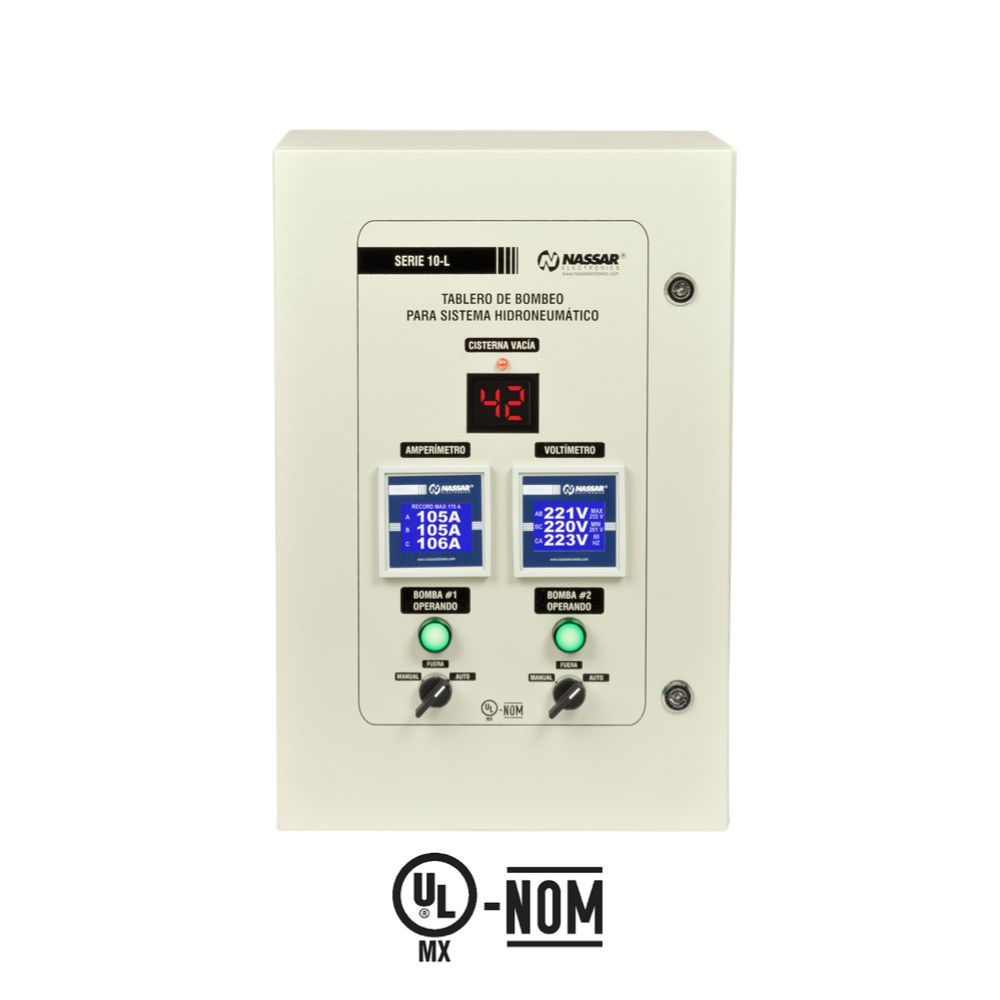

The hydro-pneumatic system panel SERIES 10L is equipped with a digital pressure gauge that indicates the system pressure in Psi/Kg*.

The adjustment of start, stop, and simultaneous pressures is easily done on the same screen with an adjustment knob.

*Note: The digital pressure gauge can measure up to 100 Psi. The panel allows maintaining the water pressure in the hydropneumatic tank within the limits previously set by the user.

It controls the automatic operation of 2 or 3 pumps that alternate and run simultaneously according to the start and stop signals received from the pressure sensor.

The panels include contactors and protection against short circuits and overload, low water level in the cistern, module for alternating and simultaneous control, electrodes, indicators, and selectors. They can be ordered with network connection for monitoring with Modbus RTU via RS-485 or Modbus TCP-IP via Ethernet.

The panel has an NEMA 4(IP66) dust and water-resistant metal cabinet.

Optional Equipment

Honeywell 100 PSI 0-5V Pressure Sensor (Required for panel operation, more economical than 2 pressure switches).
Protection against low voltage, imbalance, and phase failure with Fasealert-3 model F3.
Soft starters.
Modbus: Network connection for monitoring with Modbus RTU via RS-485 or Modbus TCP-IP via Ethernet.
Pump-Monitor: Electronic overload relay with protection against low suction level without the need for electrodes.
PD-640 protector against high-voltage discharges.
Safety disconnect switch that cuts power when opening the cabinet.
Three-phase RMS digital voltmeter with max/min voltage recording and frequency meter. Mounted on the cabinet door.
Three-phase RMS digital ammeter with max current recording. Mounted on the cabinet door.

Product Information User Manual

Specifications

HP	AMP. IN 220 V	AMP. IN 440 V
1	2.5 to 4	1.6 to 2.5
2	6 to 10	2.5 to 4
3	9 to 12	4 to 6
5	13 to 18	6 to 10
7.5	17 to 25	9 to 12
10	23 to 32	13 to 18
15	37 to 50	17 to 25
20	48 to 65	23 to 32
25	63 to 80	30 to 40
30	80 to 93	37 to 50
40	90 to 115	48 to 65
50		63 to 80
60		80 to 93

For more technical information, click here.

Related products

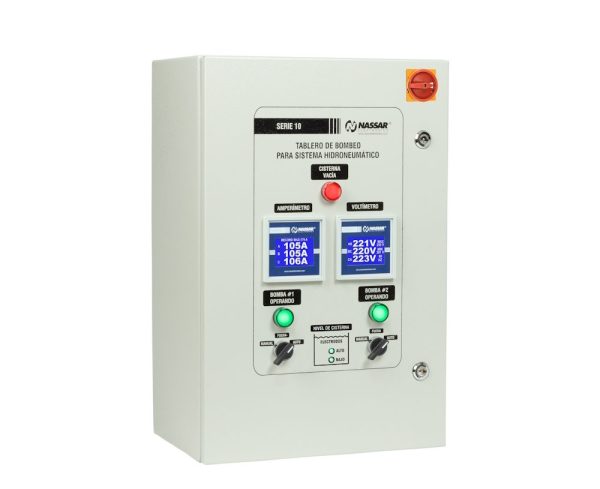

Series 10: Hydropneumatic Booster Control Panel

Controls the automatic operation of 1 to 4 pumps to maintain the desired pressure in the hydropneumatic tank within the desired ranges set on the pressure switches.

Series 10V: Variable Speed Hydropneumatic Booster Control Panel

Control panel for a variable-speed hydropneumatic system that controls the automatic operation of 1 to 4 pumps to maintain the desired pressure in the hydropneumatic tank within the desired ranges set on the pressure switches. It uses 1 drive for each pump.

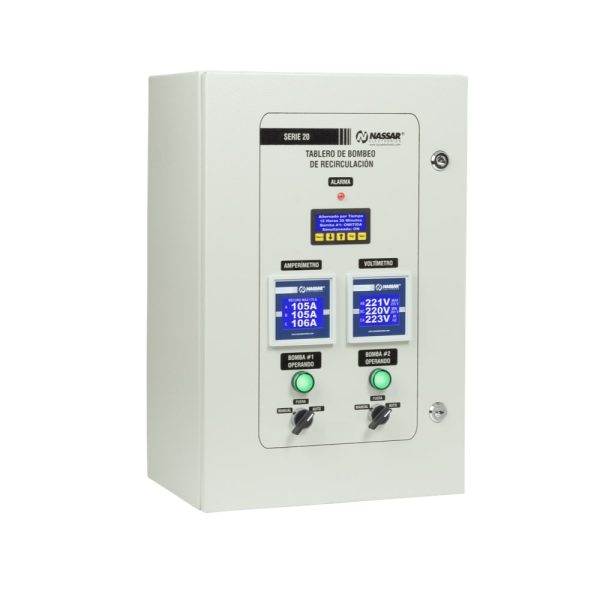

Series 20: Water Recirculation Pump Control Panel

Controls the automatic alternating and simultaneous operation of recirculation pumps to maintain the desired flow based on demand.

Series 30: Water Level Control Panel for Cistern-Tank Systems

Control panel for tank filling (water tank-cistern) that controls the automatic operation of 1 to 4 pumps, alternating and running them simultaneously to maintain the water level in the tank within the range set by the electrode level.

Series 40: Sump and Sewage Pump Control Panel

Control panel for sump pump emptying SERIES 40 controls the automatic operation of 1 to 4 pumps, alternating and running them simultaneously to maintain the sump empty within the levels previously set with level detectors (floats).

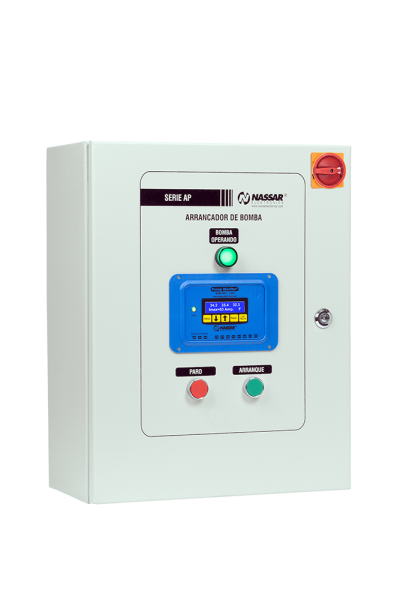

Pump Starter with Pump-Monitor Protection Model: AP
