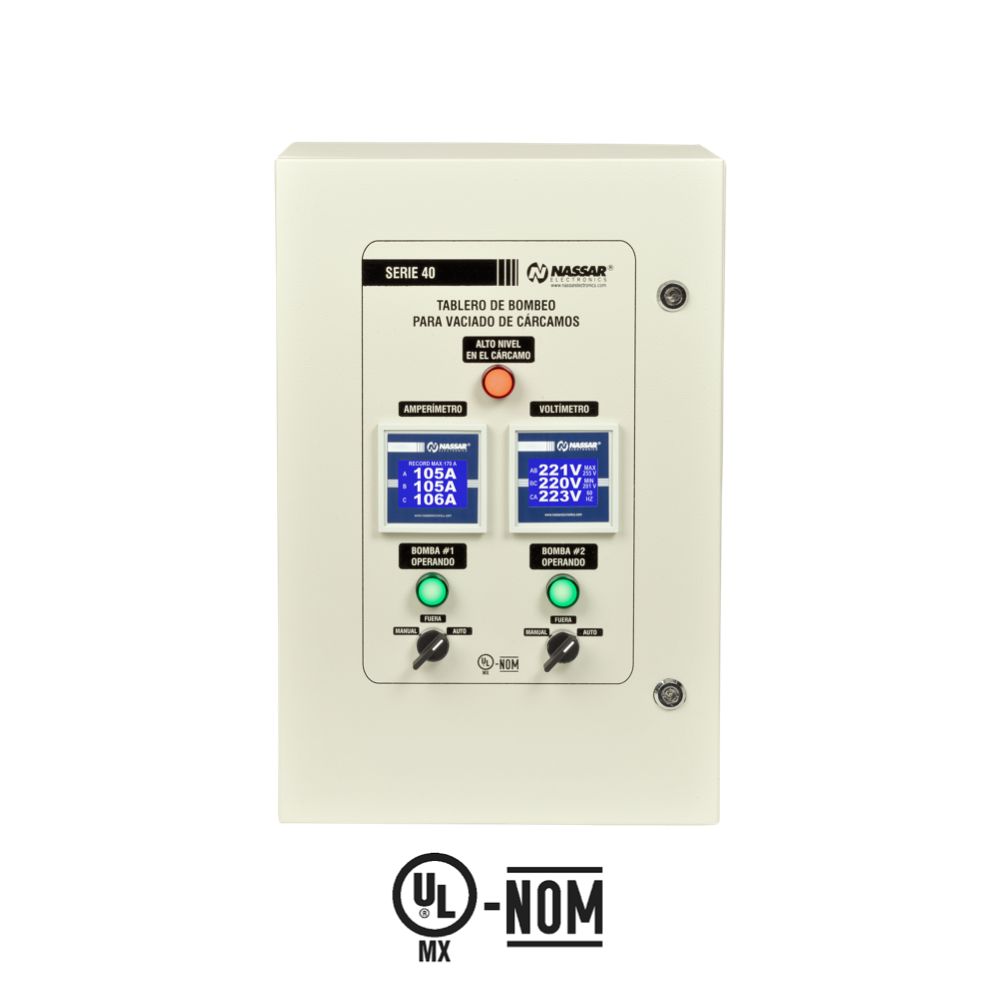

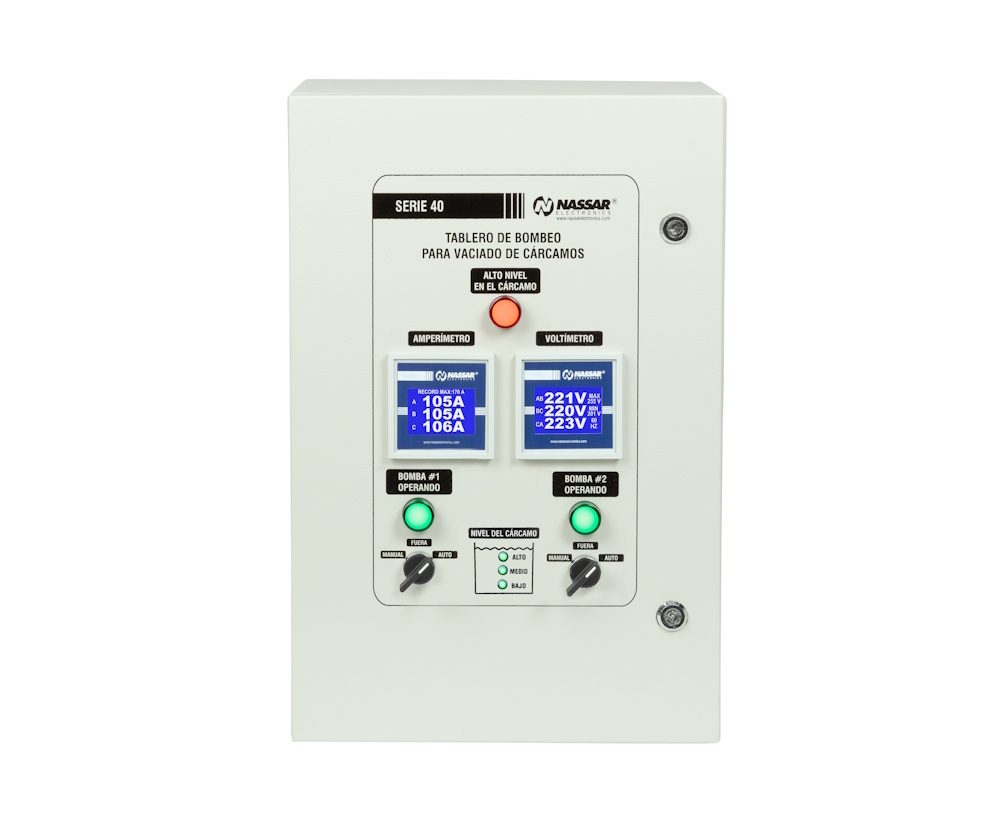

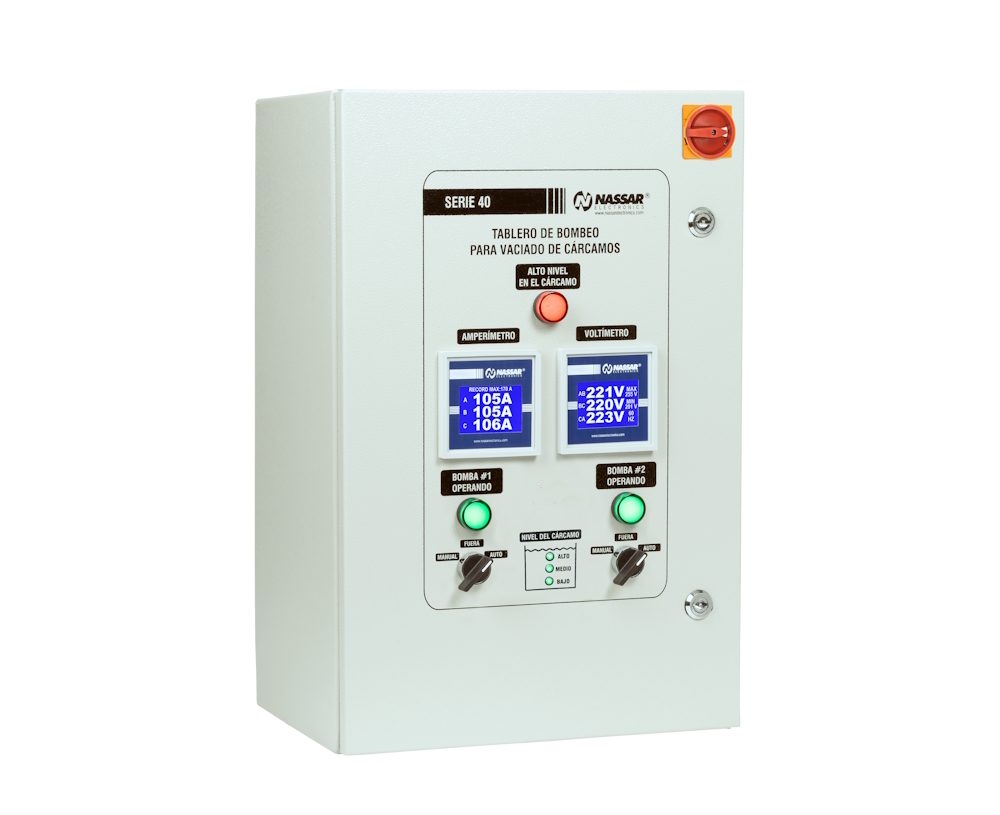

Series 40: Sump and Sewage Pump Control Panel

Request Quote Request Quote

Immediate shipping on selected models, 2 to 5 days for the rest of the models.

Features

Robust, high-tech design with the best quality.
NEMA 4(IP66) dust and water-resistant cabinet.
High-level alarm in the pump pit (Optional).
Modbus Ethernet or RS-485 Communication (Optional).
Individual Manual-Off-Automatic operation pilots and selectors.

Description

The Series 40 pump pit emptying panels control the automatic operation of 1 to 4 pumps, alternating and simultaneous operation to maintain the pump pit empty within the levels previously set with level detectors (float switches).

The panels include contactors and protection against short circuits and overload, alternating and simultaneous control module, operation pilots for each pump, and selectors. It can be ordered with network connection for monitoring with Modbus RTU via RS-485 or Modbus TCP-IP via Ethernet.

The panel has a NEMA 4(IP66) dust and water-resistant metal cabinet with corrosion-resistant paint.

Optional Equipment

Protection against low voltage, imbalance, and phase failure with Fasealert-3 model F3.
Soft starters.
Modbus: Network connection for monitoring with Modbus RTU via RS-485 or Modbus TCP-IP via Ethernet.
Safety disconnect switch that cuts power when opening the cabinet.
Leakage detector in the seal and high-temperature model DFS-12 (1 per pump).
Mercury level detectors (float switches):
Visual and audible high-level alarm in the pump pit.
PD-640 protector against high-voltage discharges.
Three-phase RMS digital voltmeter with max/min voltage recording and frequency meter. Mounted on the cabinet door.
Three-phase RMS digital ammeter with max current recording. Mounted on the cabinet door.

Product Information User Manual

Specifications

HP	AMP. IN 220 V	AMP. IN 440 V
1	2.5 to 4	1.6 to 2.5
2	6 to 10	2.5 to 4
3	9 to 12	4 to 6
5	13 to 18	6 to 10
7.5	17 to 25	9 to 12
10	23 to 32	13 to 18
15	37 to 50	17 to 25
20	48 to 65	23 to 32
25	63 to 80	30 to 40
30	80 to 93	37 to 50
40	90 to 115	48 to 65
50		63 to 80
60		80 to 93

For more technical information, click here.
