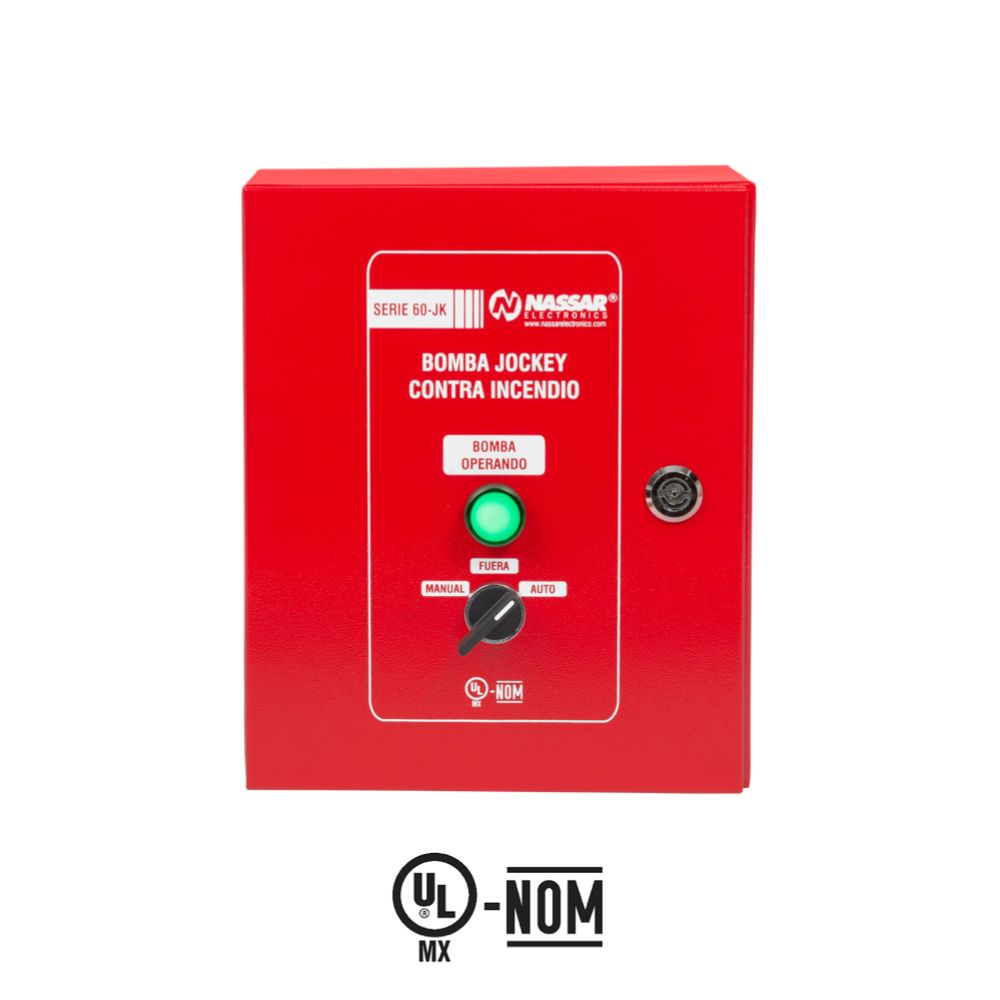

Series 60-JK: Jockey Pump Controller

Request Quote Request Quote

Immediate shipping on selected models, 1 to 2 days for the rest of the models.

Features of SERIE-60 JK Panels include:

Full-voltage magnetic contactor.
Motor protector.
Manual-Off-Automatic operation selector.
Pilot light indicates when the pump is operating.
Minimum operation delay from 0 to 3 min. (Optional).
Control transformer 220/440 V for 440 V panels.
Red NEMA 4(IP66) metal cabinet, dust and water-resistant, measuring 30 x 25 x 15.

Description

The SERIE 60-JK Fire Control Panels control the automatic operation of Jockey pumps.

The start signal is obtained from a pressure switch placed in the fire network. When the pressure in the network drops, the panel starts the pump and turns it off once the pressure in the fire network is restored.

Additionally, the 60-JK panel can be ordered with an adjustable minimum operation timer from 0 to 3 minutes. Once the panel starts the pump, this timer ensures that it operates for at least a predetermined time. This prevents the pump from starting and stopping if there are pressure variations in the network.

Optional Equipment

Safety disconnect switch that disconnects power when opening the cabinet.
Remote alarm for voltage faults.
Pressure switch 1-10 kg (15-147 PSI).
Minimum operation timer of 0-3 min.
Digital three-phase RMS voltmeter with max/min voltage and frequency recording. Mounted on the cabinet door.
Digital three-phase RMS ammeter with max current recording. Mounted on the cabinet door.

Product Information User Manual

Specifications

MODEL	VOLTAGE	HP	AMP
60-JK-01-220	220 V	1	2.5 a 4
60-JK-02-220	220 V	2	6 a 10
60-JK-03-220	220 V	3	9 a 12
60-JK-05-220	220 V	5	13 a 18
60-JK-01-440	440 V	1	1.6 a 2.5
60-JK-02-440	440 V	2	2.5 a 4
60-JK-03-440	440 V	3	4 a 6
60-JK-05-440	440 V	5	6 a 10

Pump Operating Indicator with 22mm pilot light.
Minimum operation timer: Adjustable from 0 to 3 minutes (optional).

For more technical information, click here.
